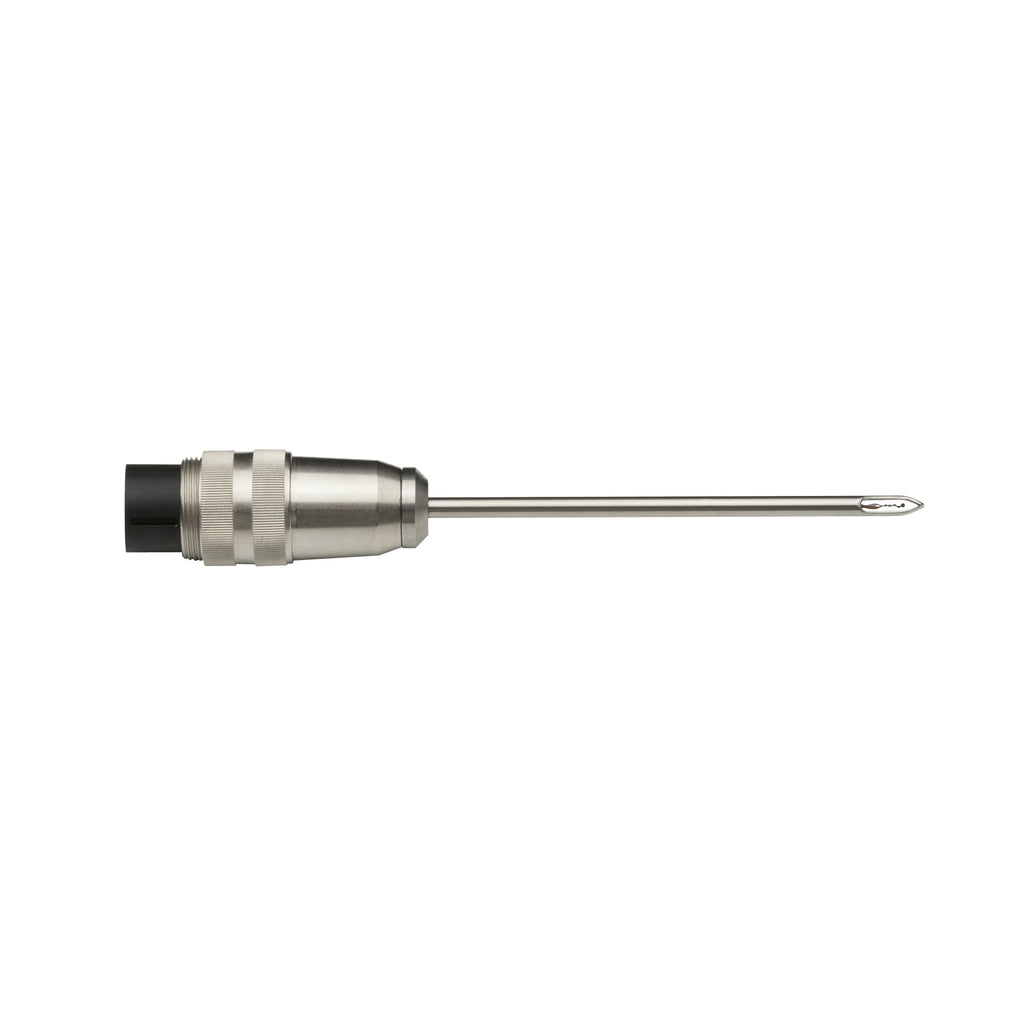

AT25L Integral Plug Probe
Air Probe with Integral Plug
The AT25L Air Probe with Integral Plug is designed to be fastened directly to a thermometer for single handed operation when taking temperature readings.
The AT25L Air Probe with Integral Plug is fitted with a 6-Pin Lumberg connector with locking screw, to provide a strong and secure probe-to-instrument connection with better prevention of liquid ingress.
Not suitable for intrinsically safe applications
Technical Specifications
| Name | Value |
|---|---|
| Sensor Type | Type T Thermocouple |
| Connector Type | 6-Pin Lumberg |
| Temperature Measurement Range | -100°C to +250°C / -148°F to +482°F |
| Response Time | 0.4 seconds |
| Stem Length | 75mm |
| Stem Diameter | 3.3mm |
| Compliance | Thermocouples: Tolerances relate to BS EN60584-2 (1993) Class 1 |
| Warranty | 6 Months |
