SX23L Between Pack Probe - Thermistor

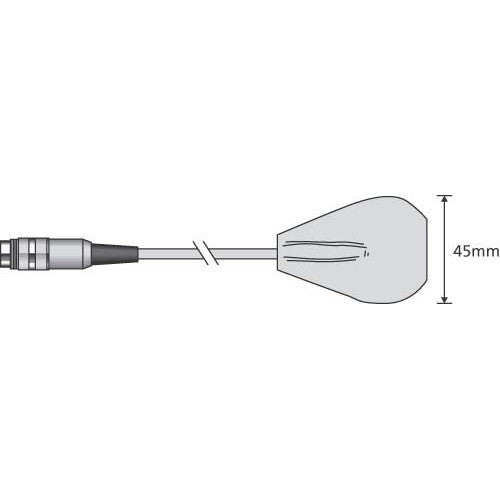

The SX23L Between Pack Probe (Thermistor) is a general purpose surface probe designed for inserting between packs of food. It has a flat foil end in which the Thermistor (PST) sensor is located.
- Temperature Range: -40°C to +70°C / -40°F to +158°F
- Sensor Type: Thermistor (PST)
- Connector Type: 6-Pin Lumberg
- Warranty: 6 Months
- Lumberg Connector
The SX23L Between Pack Probe is fitted with a 6-Pin Lumberg connector with locking screw, to provide a strong and secure probe-to-instrument connection with better prevention of liquid ingress.
Technical Specifications
| Name | Value |
|---|---|
| Sensor Type | Thermistor (PST) |
| Connector Type | 6-Pin Lumberg |
| Temperature Measurement Range | -40°C to +70°C / -40°F to +158°F |
| System Accuracy with Comark Thermometer | ±0.5°C -20°C to +70°C / ±0.9°F -4°F to +158°F |
| Response Time | 15.0 seconds |
| Foil Width (Max) | 45mm |
| Lead Length | 1.0m |
| Lead Material | FEP |
| Compliance | Thermocouples: Tolerances relate to BS EN60584-2 (1993) Class 1 |
| Warranty | 6 Months |
