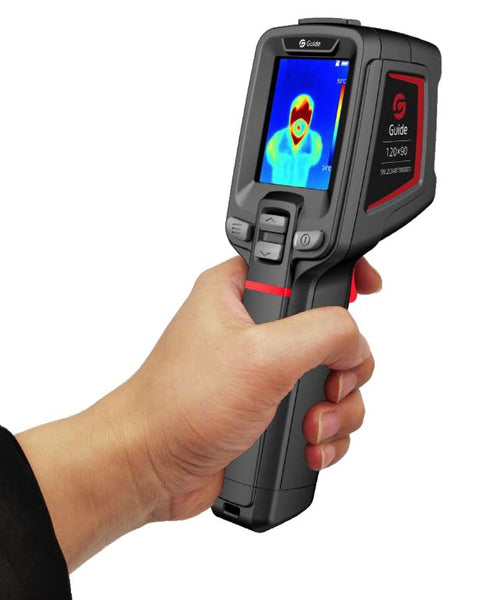

Guide T120H Fever Screening Thermal Camera

€795.00 €550.00
-
+
€550.00

GUIDE T120H Fever Screening Thermal Camera is a fast temperature non contact detection tool, which can be used to detect human temperature from a safe distance with accuracy of < ±0.5℃.

It is an economical and practical thermal camera suitable for Fixed or Mobile use indoors and outdoors.

The Guide T120H will is specifically manufactured to meet the primary temperature screening needs of Supermarkets, Restaurants, Retail Outlets, Schools, Nursing Homes, Factories, Construction Sites and Public Buildings.

  • Contact Us for Special Offers on Quantity Quotations

  • We are Currently running a Special Offer

The Guide T120H Fever Screening Thermal Camera is suitable for the Return to Work Safety Protocols for Employers and Workers Regarding the Measures to Prevent the Spread of COVID-19 in the Workplace.

With two intelligent temperature screening modes, GUIDE T120H is not only suitable for flexible temperature screening, but also can be deployed at the entrances and exits of the public area, which makes it an ideal device to improve the efficiency of epidemic prevention and protect public health.

Accessories are available for the T120H Fever Screening Thermal Camera including tripods, wall mounting brackets and charging cables...here..


Single Mode: Can be used at anytime during the working day to screen staff.

Ensure the “detected human face” is in the center of the frame.
Press the trigger to freeze the image and display the temperature.
Press the trigger again to save the image and return to the real-time IR thermal image.
Save up to 1,000,000 Facial Images with Storage Media.

This is an ideal tool for Mobile Testing at the Entrance Gate.

Fast Mode: Automated Screening at entrance area's for Staff or Public

For areas with larger movement of people entering.
The Highest temp in the image will be auto-tracked.
And once an elevated temperature is detected, the image will be captured and saved automatically.

This method is ideal for a COVID Officer at the Entrance.

Features:

  • Adopt the high sensitive WLP IR detector with independent intellectual property rights.
  • Boot up in 1 second, fast temperature detection, automatic fever identification and alarm.
  • 1-meter safe detection distance, low risk of infection.
  • Save up to 100,000 images for review.
  • TYPE-C interface, 2.5H fast charge, battery time up to 8H.
  • Compact and portable, suitable for mobile detection, also can be fixed by optional tripod or wall bracket.
  • Accuracy < ±0.5℃.

Applications:

  • Suitable for rapid temperature screening in factories, schools, shopping malls, office buildings and other public places to control and reduce the spread of virus with fever  symptom, such as Novel Coronavirus, Ebola, SARS.



  • Contact Us for Special Offers on Quantity Quotations


Download Literature

    HHSolutions_GUIDE_T120H_Fever_Screening_Thermal_Camera

T120H
CategoryItemSpecification
IR DetectorIR resolution120*90@17μm
Detector typeUncooled Vox/7.5~14μm
Frame Rate25HZ
NETD60mk
Focal Length/F#2.28mm/F1.13
FOV50°x38°
IFOV7.6mrad
FocusFocus-free
Image   DisplayDisplay type2.4inch LCD display
Display Resolution240*320
Image ModeIR Image
Temperature MeasurementFilter Range20℃-50℃
Accuracy≤±0.5℃ (Ambient temperature 25 ℃, target distance 1m, target temperature 32 ℃ ~ 42 ℃, )
Measurement PointCentral   point
AlarmOver-temperature   alarm, color prompt  (preset value:   37.3℃)
Image   StorageStorage MediaTF   card (maximum support: 32G)
 Image FormatFull   Radiometric (JPG)   (120*90)
Communication ModeUSBTYPE-C,   TF Card slot
Tripod InterfaceYES
Power   SystemBattery TypeRechargeable   Li-ion battery
Operating Time>8H
Charging TimeDC,≤2.5H
Enviromental ParameterOperating Temperature-10℃~50℃
Storage Temperature-40℃~70℃
EncapsulationIP54,2-meter Drop Test
OthersCertificationCE/ROHS/FCC
Weight350g
Dimension194mm   *61.5mm *76mm
Standard AccessoriesWristband,Quick   start Guide,Charging adapter, Plug, USB Type-C cable,Download card,16G TF   Card
