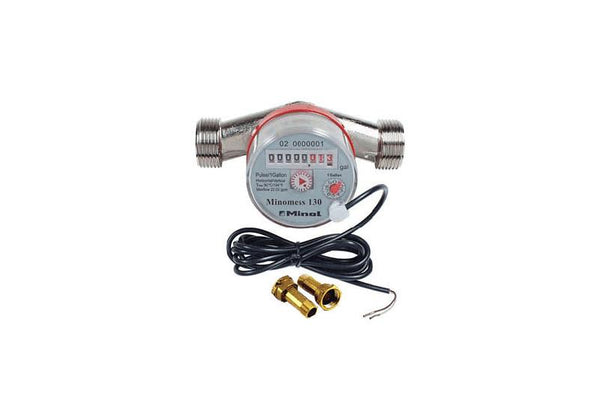

No-lead Water Flow Meter Sensor

€295.57
-
+
€295.57

Overview

Measure cold and hot water flow rates with this compact, affordable water meter. The small-sized T-MINOL-130-NL is designed for deployment in apartments, assisted living communities, and other commercial buildings. Please note, the T-MINOL is configured for use with 3/4" pipes. (Use step-ups or step-downs to deploy the T-MINOL with 1/2" or 1" pipe diameters.)

Highlighted Features

  • Measures cold and hot water flow rates
  • Suitable for use in apartments, assisted-living communities, and other types of commercial buildings
  • Configured for use with 3/4" pipes, use step-downs for smaller pipe.

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-MINOL-130-NL sensor supports the following measurement: Water Flow

To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Measurement range:  .25 to 22.0
Accuracy:  AWWA spec 97 - 103%
Connection size:  ANSI/ASME B1.20.1-1983; 1-11.5 SNPSM thread; 5/8 x 3/4 in ID
Dimensions:  length 5.12 in, width 2.5 in, height 3.15 in
Cable length:  59 in.
Water temperature range:  40F to 194F
Meter max reading:  99,999,999 US gal
Resolution: 1 contact closure per gal
Body:  nickel-plated brass
Weight:  1.32 lbs
Pressure drop:  < 8.70 psi typical @ 22 gpm; < 3.6 psi @ 11 gpm
Reed switch:  dry contact
UL Listed
ABSI/NSF61 Certified
