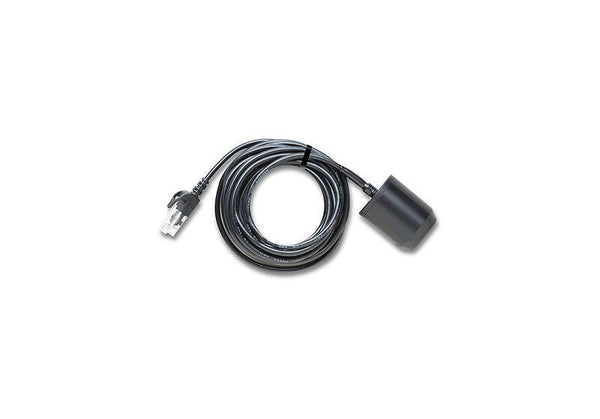

Photosynthetic Light (PAR) Smart Sensor

€321.20
-
+
€321.20

Overview

The Photosynthetic Light (PAR) Smart Sensor is intended to measure light intensity for the frequencies relevant for photosynthesis. This sensor has a measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm. Enclosed in a anodized aluminum housing with acrylic diffuser and o-ring seal, this model has a 3m cable; a light sensor bracket and light sensor level are recommended.

Also available in a wireless model for use with the HOBOnet Field Monitoring System.

Highlighted Features

  • Measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm
  • Plug-n-play smart sensor
  • Compatible with RX, H21, H22, and U30 family loggers

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The S-LIA-M003 sensor supports the following measurements: Light Intensity and PAR

The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Measurement parameters: average over logging interval, user-defined sampling interval from 1 second
Measurement range: 0 to 2500 umol/m2/sec, wavelengths of 400 to 700 nm
Operating temperature range: -40° to 75°C (-40° to 167°F)
Accuracy: ±5 umol/m2/sec or ± 5%, whichever is greater in sunlight; additional temperature-induced error ±0.75 umol/m2/sec/degree C from 25°C. Cosine corrected 0 - 80 degrees, 360 degree rotation.
Resolution: 2.5 umol/m2/sec
Drift: <±2% per year
Response time:
Housing: anodized aluminum housing with acrylic diffuser and o-ring seal
Dimensions: 4.1 cm height x 3.2.4 cm diameter (1 5/8" height x 1 1/4" diameter)
Approximate weight: 120 g (4 oz)
Cable length: 3 meter (10')
Length of Smart Sensor Network Cable: 3m

Note: Light sensor bracket and light sensor level recommended


Description: ce - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
