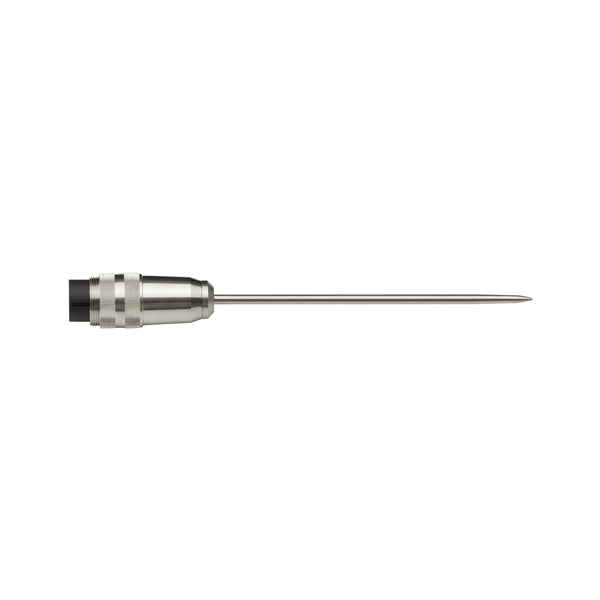

PT25L Integral Plug Probe - Type T
The PT25L Integral Plug Probe is designed to be a general purpose penetration probe. It can be fastened to a thermometer for single handed operation when taking temperature readings.
- Temperature Range: -100 to +250°C / -148 to +482°F
- Sensor Type: Type T Thermocouple
- Connector Type: 6-Pin Lumberg
- Warranty: 6 Months.
Lumberg connector
Technical Specifications
| Name | Value |
|---|---|
| Sensor Type | Type T Thermocouple |
| Connection Type | 6-Pin Lumberg |
| Temperature Measurement Range | -100°C to +250°C / -148°F to +482°F |
| Response Time | 2.0 seconds |
| Stem Length | 100mm (4") |
| Stem Diameter | 3.3mm |
| Compliance | Thermocouples: Tolerances relate to BS EN60584-2 (1993) Class 1 |
| Conformance to EU Regulation 1935/2004 ('Framework' Regulation on all Food Contact Materials) | Yes |
| Stem (Shaft) Material | 316L Stainless Steel |
| Warranty | 6 Months |
