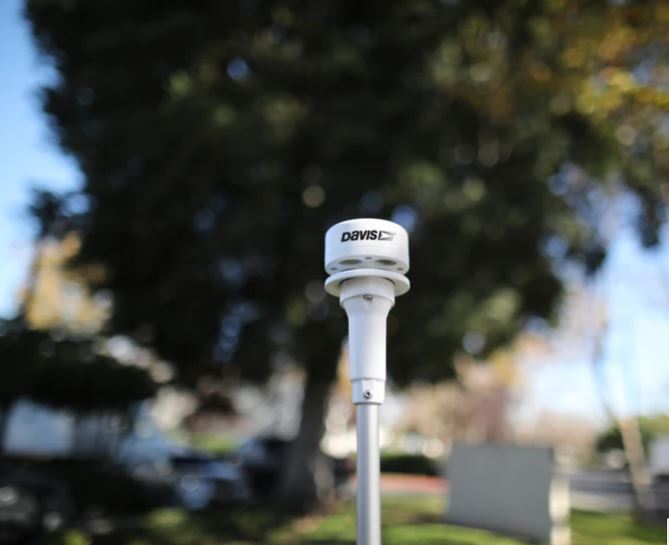

Davis Sonic Anemometer 6415
HH Soultions supply the Davis Sonic Anemometer 6415 which measures wind speed and direction without moving parts.
Pairs of electro‐acoustic transducers in the anemometer send sonic pulses back and forth, and measure the time it takes for the pulse to travel from one to the other. This time is affected by the movement of the air, which allows the anemometer to calculate wind speed and direction, calibrated by temperature measurements.
The sonic anemometer has its own solar panel, so requires no external power.
- Accurately measures wind direction and speed with no moving parts.
- Solar-powered with battery backup.
- Captures wind speeds from 0 – 89 mph/144 kmph
- Uses sonic pulses to detect air movement.
- Comes complete with mounting hardware, battery, aligning tool, and 40ft. (12 m) cable.
- One-year manufacturer's warranty.
The Davis Sonic Anemometer 6415 can be used as a replacement anemometer for your wireless or cabled Vantage Pro2 weather station.
You may also Add an additional wind station to your Vantage Pro2 or Vantage Vue system.
Note: Sensor Transmitter Davis 6322OV is required. Wind data can transmit to a WeatherLink Console, WeatherLink Live, or Vantage Pro2 Console
Download Literature
Davis_6415_Specifications
6415_Manual_Sonic_Anemometer
