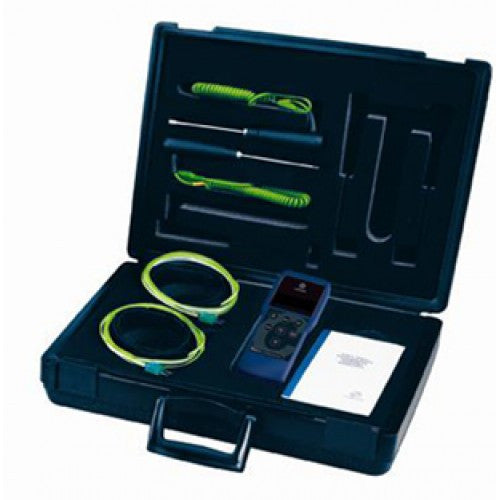

Heating and Ventilation Kit with Thermometer, Probes and Case
- Single and Dual (Differential) Inputs
- Maximum and minimum temperature memory
- Displays temperature in °C, °F and K
- Hold function to freeze displayed reading
- year warranty and free certificate of conformity
- Calibration - BS EN thermocouples (ITS)
- Selectable auto switch off
- Sub-miniature connector
- Dust and waterproof to IP
- Kit includes:
- x N Thermometer
- x LC Case
- x SKM Surface Probes
- x SKM Surface Probe
- x AKM Air Probe
Download Literature
N9002 Industrial Thermometer
Sensor Type Thermocouple types K, N, T, J, R, S, E, B
--------------------------------------------------------------------------------
Measurement Range
Thermocouple Type K -200°C to +1372°C, -328°F to +2502°F
Thermocouple Type N -200°C to +1300°C, -328°F to +2372°F
Thermocouple Type T -200°C to +400°C, -328°F to +752°F
Thermocouple Type J -200°C to +1200°C, -328°F to +2192°F
Thermocouple Type R and S -50°C to +1767°C, -58°F to +3212°F
Thermocouple Type E -200°C to +1000°C, -328°F to +1832°F
Thermocouple Type B +100°C to +1820°C, +212°F to +3308°C
--------------------------------------------------------------------------------
Calibration BS EN 60584 thermocouples (ITS90)
Scales °C, °F, K
--------------------------------------------------------------------------------
Resolution 0.1° below +1000°, 1° above (autoranging)
Accuracy at +23°C,+73°F
Type K Only <±0.1% of reading ±0.2°C/0.4°F
--------------------------------------------------------------------------------
Connector Type Sub-miniature
--------------------------------------------------------------------------------
Operating Temperature Range -25°C to +50°C, -13°F to +122°F
Environmental Protection IP67 BS EN 60529 IEC 529
Battery Type 2 x IEC LR6, Size AA
Battery Life 200 hours
--------------------------------------------------------------------------------
Dimensions
Length 183mm/7.2 inches
Width 68/79mm/2.68/3.11 inches
Depth 31mm/1.22 inches
Weight 270g/9.5oz
