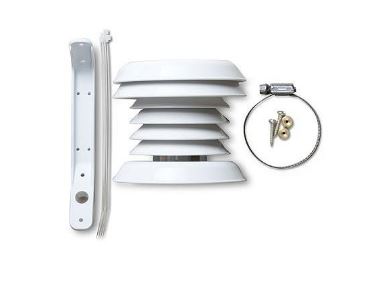

RS3-B Solar Radiation Shield
HH Solutions supply the RS3-B Solar Radiation Shield for HOBO external sensors for improved temperature measurement accuracy in locations exposed to sunlight.
The RS3-B has a small size and unobstructed airflow helping this shield provides a faster response to changing conditions than larger radiation shields.
The RS3-B Solar Radiation Shield works with most of Onset's external temperature and temperature/relative humidity sensors.
Note: This shield does not protect sensors from light reflected from below the shield at some angles.
Download Literature


The country of origin for this product is the United States.
Time response:2.5 times faster than the RS1 and M-RSA
Wind resistance: Tested in sustained winds up to 129 kph (80 mph), Tested in gusts up to 161 kph (100 mph)
Materials:
Shield: ASA styrene (UV-stable)
Bracket: Glass-filled nylon (UV-stable)
Mounting hardware: Stainless steel and brass
Temperature: -40° to 75°C (-40° to 167°F)
Weight:113 g (4 oz)
Height: 89 mm (3.5 inches); 159 mm (6.25 inches) with bracket
Diameter: 102 mm (4 inches); bracket protrudes an additional 51 mm (2 inches) from shield
Maximum Sensor Diameter: 1.22 cm (0.48 inches)
Mounting:Up to 51 mm (2 inches) mast diameter with hose clamp; unlimited with screws
Compatible sensors: S-THC-M00x, S-TMB-M0xx, RXW-THC-xxx, RXW-TMB-xxx, TMCx-HD, and external sensors from U23-00x or MX230x.
Note: This shield does not protect sensors from light reflected from below the shield at some angles.
